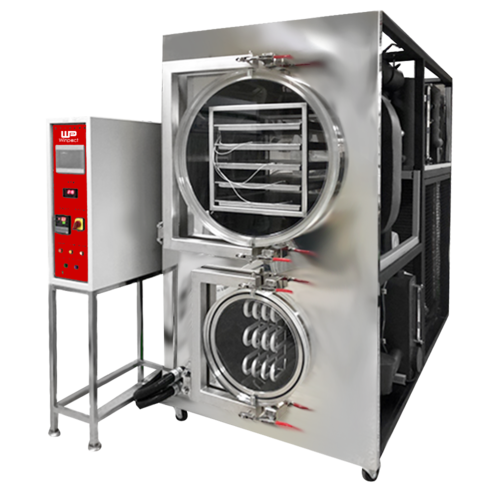

Shelf Type Vacuum Freeze Dryer
Shelf Type Vacuum Freeze Dryer
产品介绍
Journal Article
Winpact SIP-200L South Dakota Mines USA NEWS Winpact Shelf Type Vacuum Freeze Dryer.
- Shelf temperature range -55°C to +50°C
- Condenser temperature -65°C to 75°C (depending on load)
- Air-cooled
* All images are for reference only, actual products might differ from the pictures above.
* Technical specifications subject to change without notice.
| Name | Shelf Type Vacuum Freeze Dryer |
|---|---|
| Shelf temperature range | -55°C to +50°C |
| Condenser temperature | -65°C to 75°C (depending on load) |
| CFC-free refrigerants | R507 / R508A |
| Cooling | Air-cooled |
| Inner chamber material | SUS304 stainless steel with mirror polishing |
| Loading Capacity | Individual Tray Area:500 mm × 340 mm = 170,000=0.17m2 Total Shelf Area (3 Trays): 0.17m2 × 30mm =0.51 m2 |
| Tray number | 3 flat trays |
| Vacuum system | Oil-free vacuum pump, 833 L/min |
| Vacuum (no-load) | 8.0 × 10⁻³ Torr (≈ 1.07Pa) |
| control | PLC + HMI with temperature & vacuum control |
| Power | 3Φ, AC220V/AC380V, 60Hz |
