MS Pipette 移液器, MSP Series
MSP Series微量分注器是值得您信赖的工具，精准且无污染的设计协助您生产高品质的实验数据
产品介绍
MS 微量分注器是值得您信赖的工具，精准且无污染的设计协助您生产高品质的实验数据。以最新的人体工学为基础进行改良有效提升舒适度，人性化的设计让操作更简单顺手，不论惯用手是左手还是右手，手大或小都可以轻松操作。全新活塞设计轻压即可准确吸放液体，大幅减少故障频率。坚固的外壳与零件可使用高压灭菌釜进行消毒并且耐腐蚀，不会与溶液产生化学反应，提供使用者安全安心并无污染的实验数据。此外，MS 微量分注器与市场大多数吸头(tip)品牌兼容。同时拥有ISO认证，我们坚持提供客户兼顾质量与功能的最佳产品，并提供完善的售后服务与亲切的价格。所有相关配件请参阅major science网页或烦请来电洽询。
Precise volume adjustment & light pipetting forces
- A. Color-coded push-button Color-coded push-button
- B. Operating-rod Operating-rod
- C. Easy tip ejection
- D. Volumeter display (Counter)
- E. Connecting nut Connecting nut
- F. Tip-holder Tip-holder
- G. Easy tip-ejector removal Easy tip-ejector removal
Use the serial number to identify the pipette and to determine its age
* 适合 微量吸管尖, MS-PW 系列.
- 质地轻巧
- 软质弹簧设计，使用超省力
- 可控式体积设定，避免随意调整造成设定值改变
- 明显数值显示，方便体积调整
- 波浪型设计 : 适合不同手掌大小使用
- 加大按压钮设计，圆形且方便自由旋转
- 指钩式设计 : 方便操作者抓握
- 3-方位tip 弹放键选择 (左手及右手使用者可自由调整)
- 实验室自行校正容易 (内含校正工具)
- 高准确度及精确度
- 独特的序号编排，方便检索出厂资料
- 即使长时间照射也有抗UV特性
- 所有元件可灭菌 (121°C/0.1MPa/20 min)
Conception of new seals and lighter springs and use of high quality lubricant:
- Reduce pipetting and purge forces by 50%
- Have an easy glide of the piston
- Maintain an adequate ratio (~1/3) between pipetting forces and purge forces to feel confident in results
- Maintain quality and robustness of our pipetting system.
| Single Channel Models | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Cat No. | Volume (µL) | SPECIFICATIONS | ISO 8655 | ||||||
| Systematic Error | Random Error | Systematic Error | Random Error | ||||||
| (µL) | (%) | (µL) | (%) | (µL) | (%) | (µL) | (%) | ||
| MSP-2 | 0.2 | ±0.026 | ±13.2% | MSP-2 | 0.2 | ±0.026 | ±13.2% | MSP-2 | 0.2 |
| 2 | ±0.033 | ±1.7% | 2 | ±0.033 | ±1.7% | 2 | |||
| MSP-10 | 1 | ±0.028 | ±2.8% | MSP-10 | 1 | ±0.028 | ±2.8% | MSP-10 | 1 |
| 10 | ±0.110 | ±1.1% | 10 | ±0.110 | ±1.1% | 10 | |||
| MSP-20 | 2 | ±0.11 | ±5.5% | MSP-20 | 2 | ±0.11 | ±5.5% | MSP-20 | 2 |
| 20 | ±0.20 | ±1.0% | 20 | ±0.20 | ±1.0% | 20 | |||
| MSP-100 | 10 | ±0.39 | ±3.9% | MSP-100 | 10 | ±0.39 | ±3.9% | MSP-100 | 10 |
| 100 | ±0.80 | ±0.8% | 100 | ±0.80 | ±0.8% | 100 | |||
| MSP-200 | 20 | ±0.55 | ±2.8% | MSP-200 | 20 | ±0.55 | ±2.8% | MSP-200 | 20 |
| 200 | ±1.60 | ±0.8% | 200 | ±1.60 | ±0.8% | 200 | |||
| MSP-1000 | 100 | ±3.3 | ±3.3% | MSP-1000 | 100 | ±3.3 | ±3.3 | MSP-1000 | 100 |
| 1000 | ±0.8 | ±8.0% | 1000 | ±0.8 | ±8.0% | 1000 | |||
| MSP-5000 | 500 | ±13 | ±2.6% | MSP-5000 | 500 | ±13 | ±2.6% | MSP-5000 | 500 |
| 5000 | ±33 | ±0.7% | 5000 | ±33 | ±0.7% | 5000 | |||
| MSP-10000 | 1000 | ±33 | ±3.3% | MSP-10000 | 1000 | ±33 | ±3.3% | MSP-10000 | 1000 |
| 10000 | ±60 | ±0.6% | 10000 | ±60 | ±0.6% | 10000 | |||
| Multichannel Models | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Cat No. | Volume (µL) | SPECIFICATIONS | ISO 8655 | ||||||
| Systematic Error | Random Error | Systematic Error | Random Error | ||||||
| (µL) | (%) | (µL) | (%) | (µL) | (%) | (µL) | (%) | ||
| MSP-8X10 | 0.5 | ±0.09 | ±17.6% | MSP-8X10 | 0.5 | ±0.09 | ±17.6% | MSP-8X10 | 0.5 |
| MSP-8X20 | 2 | ±0.11 | ±5.5% | MSP-8X20 | 2 | ±0.11 | ±5.5% | MSP-8X20 | 2 |
| MSP-8X200 | 20 | ±0.6 | ±2.8% | MSP-8X200 | 20 | ±0.6 | ±2.8% | MSP-8X200 | 20 |
| MSP-8X300 | 20 | ±1.1 | ±3.7% | MSP-8X300 | 20 | ±1.1 | ±3.7% | MSP-8X300 | 20 |
| MSP-12X10 | 10 | ±0.22 | ±2.2% | MSP-12X10 | 10 | ±0.22 | ±2.2% | MSP-12X10 | 10 |
| MSP-12X20 | 20 | ±0.40 | ±2.0% | MSP-12X20 | 20 | ±0.40 | ±2.0% | MSP-12X20 | 20 |
| MSP-12X200 | 200 | ±2.2 | ±1.1% | MSP-12X200 | 200 | ±2.2 | ±1.1% | MSP-12X200 | 200 |
| MSP-12X300 | 300 | ±3.3 | ±1.1% | MSP-12X300 | 300 | ±3.3 | ±1.1% | MSP-12X300 | 300 |

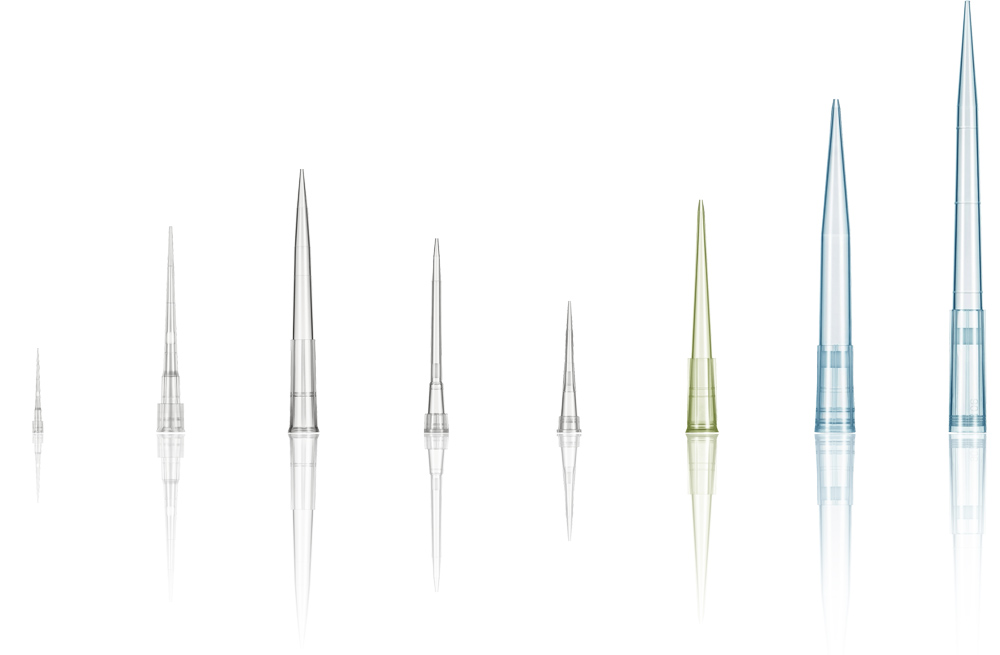

微量分注器吸頭比較表
| Tip Compatibility | ||||||||
|---|---|---|---|---|---|---|---|---|
| major science Single Channel Pipettes w/ Tips | ||||||||
| Key: | Ο:Not Compatible Ο:Poor Fit Ο:Ok fit Ο:Good fit -: N/A Φ: No ejection possible | |||||||
| major science Pipettes | ||||||||
| Tip Brand | Volume | MSP-2, MSP-10 | MSP-20 | MSP-100 | MSP-200 | MSP-1000 | MSP-5000 | MSP-10000 |
| Axygen | 10µL (short) | Ο | Φ | - | - | - | - | - |
| 10µL (long) | Ο | Φ | - | - | - | - | - | |
| 20µL | Ο | Ο | - | - | - | - | - | |
| 100µL | - | - | Ο | Ο | - | - | - | |
| 200µL | - | Ο | Ο | Ο | - | - | - | |
| 300µL | - | - | - | Ο | - | - | - | |
| 1000µL | - | - | - | - | Ο | - | - | |
| 1100µL | - | - | - | - | Ο | - | - | |
| 5000µl | - | - | - | - | - | Ο | - | |
| Brand | 10µl (long) | Ο | Φ | - | - | - | - | - |
| 200µl | - | - | - | - | ||||
| 1000µl | - | - | - | - | Ο | - | - | |
| 5000µl | - | - | - | - | - | Ο | - | |
| 10mL | - | - | - | - | - | - | Ο | |
| Greiner / Sapphire | 10µL | Ο | Φ | - | - | - | - | - |
| 20µL | Ο | Φ | - | - | - | - | - | |
| 100µL | - | - | Ο | - | - | - | - | |
| 200µL | - | - | Ο | Ο | - | - | - | |
| 1000µL | - | - | - | - | Ο | - | - | |
| Starlab | 10µL (long) | Ο | Φ | - | - | - | - | - |
| 20µL | Ο | Ο | Ο | - | - | - | - | |
| 100µL | - | - | Ο | - | - | - | - | |
| 200µL | - | Ο | Ο | Ο | - | - | - | |
| 300µL | - | - | Ο | Ο | - | - | - | |
| 1000µL | - | - | - | - | Ο | - | - | |
| 1250µl | - | - | - | - | - | - | - | |
| 5000µl | - | - | - | - | - | Ο | - | |
| 10mL | - | - | - | - | Ο | - | Ο | |
| Eppendorf | 10µL (long) | Ο | Φ | - | - | - | - | - |
| 20µL | Ο | Ο | Ο | - | - | - | - | |
| 100µL | - | - | Ο | Ο | - | - | - | |
| 200µL | - | Ο | Ο | Ο | - | - | - | |
| 300µL | - | - | - | Ο | - | - | - | |
| 1000µL | - | - | - | - | Ο | - | - | |
| 1250µl | - | - | - | - | - | - | - | |
| 5000µl | - | - | - | - | - | Ο | - | |
| 10mL | - | - | - | - | - | - | Ο | |
| Sartorius | 10µL | Ο | Φ | - | - | - | - | - |
| 200µl | - | Ο | Ο | Ο | - | - | - | |
| 350µL | - | - | Ο | Ο | - | - | - | |
| 1000µl | - | - | - | - | Ο | - | - | |
| 5000µl | - | - | - | - | - | Ο | - | |
| 10mL | - | - | - | - | - | - | Ο | |
| Rainin | 10µL (short) | Ο | Φ | - | - | - | - | - |
| 10µL (long) | Ο | Φ | - | - | - | - | - | |
| 20µL | Ο | Ο | - | - | - | - | - | |
| 100µL | - | - | Ο | Ο | - | - | - | |
| 200µL | - | Ο | - | Ο | - | - | - | |
| 350µL | - | - | Ο | Ο | - | - | - | |
| 1000µl | - | - | - | - | Ο | - | - | |
| 5000µl | - | - | - | - | - | Ο | - | |
| 10mL | - | - | - | - | - | - | Ο | |
| Sorenson Expert | 10µL (short) | Ο | Φ | - | - | - | - | - |
| 10µL (long) | Ο | Φ | - | - | - | - | - | |
| 200µL | - | Ο | Ο | Ο | - | - | - | |
| 300µL | - | - | - | Ο | - | - | - | |
| 1250µl | - | - | - | - | Ο | - | - | |
| Labcon | 10µL | Ο | Φ | - | - | - | - | - |
| 200µL | - | - | Ο | Ο | - | - | - | |
| 300µL | - | - | - | Ο | - | - | - | |
| 1000µl | - | - | - | - | Ο | - | - | |
| Neptune | 10µL | Ο | Φ | - | - | - | - | - |
| 20µl | Ο | Φ | - | - | - | - | - | |
| 100µl | - | - | Ο | - | - | - | - | |
| 200µl | - | - | Ο | Ο | - | - | - | |
| 300µl | - | - | - | Ο | - | - | - | |
| 1000µl | - | - | - | - | Ο | - | - | |
| 5000µl | - | - | - | - | - | Ο | - | |
| Biotix | 10µl | Ο | Φ | - | - | - | - | - |
| 20µl | Ο | Ο | - | - | - | - | - | |
| 100µl | - | - | Ο | - | - | - | - | |
| 200µl | - | - | Ο | Ο | - | - | - | |
| 300µl | - | - | - | Ο | - | - | - | |
| 1250µl | - | - | - | - | Ο | - | - | |
| Thermo Art | 10µl | Ο | - | - | - | - | - | - |
| 200µl | - | Ο | Ο | Ο | - | - | - | |
| 300µl | - | Ο | - | Ο | - | - | - | |
| 1000µl | - | - | - | - | Ο | - | - | |
| 1250µl | - | - | - | - | Ο | - | - | |
| Thermo Finntip | 10µl (short) | Ο | - | - | - | - | - | - |
| 10µl (long) | - | Ο | - | - | - | - | - | |
| 200µl | - | Ο | Ο | Ο | - | - | - | |
| 300µl | - | - | - | Ο | - | - | - | |
| 1000µl | - | - | - | - | Ο | - | - | |
| 5000µl | - | - | - | - | - | Ο | - | |
| 10mL | - | - | - | - | - | - | Ο | |
| 订购型号 | 产品描述 |
|---|---|
| MSP-2 | MS整支消毒单道移液器, 0.2~2μl |
| MSP-10 | MS整支消毒单道移液器,1~10μl |
| MSP-20 | MS整支消毒单道移液器, 2~20μl |
| MSP-100 | MS整支消毒单道移液器, 10~100μl |
| MSP-200 | MS整支消毒单道移液器, 20~200μl |
| MSP-1000 | MS整支消毒单道移液器, 100~1000μl |
| MSP-5000 | MS整支消毒单道移液器, 500~5000μl |
| MSP-10000 | MS整支消毒单道移液器, 1000~10000μl |
| MSP-8X10 | MS整支消毒8道移液器 0.5~10μl |
| MSP-8X20 | MS整支消毒8道移液器 2~20μl |
| MSP-8X200 | MS整支消毒8道移液器 20~200μl |
| MSP-8X300 | MS整支消毒8道移液器 20~300μl |
| MSP-12X10 | MS整支12通道移液器 0.5~10μl |
| MSP-12X20 | MS整支12通道移液器 2~20μl |
| MSP-12X200 | MS整支12通道移液器 20~200μl |
| MSP-12X300 | MS整支12通道移液器 20~300μl |
| MSP-ST03 | Pipette Stand |
* Technical specification and price not final and are subject to change.
MSP-ST02
MSP-ST02
Single channel / Multichannel models
| Cat No. | Volume (µL) | SPECIFICATIONS | ISO 8655 | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Systematic error | Random error | Systematic error | Random error | ||||||
| (µL) | (%) | (µL) | (%) | (µL) | (%) | (µL) | (%) | ||
| MSP-2 | 0.2 | ±0.026 | ±13.2% | ≤0.013 | ≤6.6% | ±0.080 | ±40.0% | ≤0.040 | ≤20.0% |
| 2 | ±0.033 | ±1.7% | ≤0.015 | ≤0.8% | ±0.080 | ±4.0% | ≤0.040 | ≤2.0% | |
| MSP-10 | 1 | ±0.028 | ±2.8% | ≤0.013 | ≤1.3% | ±0.120 | ±12.0% | ≤0.080 | ≤0.8% |
| 10 | ±0.110 | ±1.1% | ≤0.044 | ≤0.4% | ±0.120 | ±1.2% | ≤0.080 | ≤0.8% | |
| MSP-20 | 2 | ±0.11 | ±5.5% | ≤0.033 | ≤1.7% | ±0.20 | ±10.0% | ≤0.100 | ≤5.0% |
| 20 | ±0.20 | ±1.0% | ≤0.066 | ≤0.3% | ±0.20 | ±1.0% | ≤0.100 | ≤0.5% | |
| MSP-100 | 10 | ±0.39 | ±3.9% | ≤0.11 | ≤1.1% | ±0.80 | ±8.0% | ≤0.030 | ≤3.0% |
| 100 | ±0.80 | ±0.8% | ≤0.17 | ≤0.2% | ±0.80 | ±8.0% | ≤0.030 | ≤0.3% | |
| MSP-200 | 20 | ±0.55 | ±2.8% | ≤0.22 | ≤1.1% | ±1.60 | ±8.0% | ≤0.60 | ≤3.0% |
| 200 | ±1.60 | ±0.8% | ≤0.33 | ≤0.2% | ±1.60 | ±0.8% | ≤0.60 | ≤0.3% | |
| MSP-1000 | 100 | ±3.3 | ±3.3% | ≤0.7 | ≤0.7% | ±8.0 | ±8.0% | ≤3.0 | ≤3.0% |
| 1000 | ±0.8 | ±8.0% | ≤1.7 | ≤0.2% | ±8.0 | ±0.8% | ≤3.0 | ≤0.3% | |
| MSP-5000 | 500 | ±13 | ±2.6% | ≤3.3 | ≤0.7% | ±40 | ±8.0% | ≤15 | ≤3.0% |
| 5000 | ±33 | ±0.7% | ≤8.8 | ≤0.2% | ±40 | ±0.8% | ≤15 | ≤0.3% | |
| MSP-10000 | 1000 | ±33 | ±3.3% | ≤6.6 | ≤0.7% | ±60 | ±6.0% | ≤30 | ≤3.0% |
| 10000 | ±60 | ±0.6% | ≤17.6 | ≤0.2% | ±60 | ±0.6% | ≤30 | ≤0.3% | |
| 多通道 (八爪與十二爪) | |||||||||
| MSP-8X10 | 0.5 | ±0.09 | ±17.6% | ≤0.04 | ≤8.8% | ±0.24 | ±48.0% | ≤0.16 | ≤32.0% |
| MSP-8X20 | 2 | ±0.11 | ±5.5% | ≤0.09 | ≤4.4% | ±0.40 | ±20.0% | ≤0.20 | ≤10.0% |
| MSP-8X200 | 20 | ±0.6 | ±2.8% | ≤0.28 | ≤1.4% | ±3.2 | ±16.0% | ≤1.20 | ≤6.0% |
| MSP-8X300 | 20 | ±1.1 | ±3.7% | ≤0.39 | ≤1.3% | ±8.0 | ±26.7% | ≤3.00 | ≤10.0% |
| MSP-12X10 | 10 | ±0.22 | ±2.2% | ≤0.11 | ≤1.1% | ±0.24 | ±2.4% | ≤0.16 | ≤1.6% |
| MSP-12X20 | 20 | ±0.40 | ±2.0% | ≤0.17 | ≤0.8% | ±0.40 | ±2.0% | ≤0.20 | ≤1.0% |
| MSP-12X200 | 200 | ±2.2 | ±1.1% | ≤0.55 | ≤0.3% | ±3.2 | ±1.6% | ≤1.20 | ≤0.6% |
| MSP-12X300 | 300 | ±3.3 | ±1.1% | ≤1.10 | ≤0.4% | ±8.0 | ±2.7% | ≤3.00 | ≤1.0% |
單通道和多通道模型
 |
 |
 |
 |
| MSP-2 | MSP-200 | MSP-8X10 | MSP-12X10 |
 |
 |
 |
 |
| MSP-100 | MSP-1000 | MSP-8X20 | MSP-12X20 |
 |
 |
 |
 |
| MSP-20 | MSP-5000 | MSP-8X200 | MSP-12X200 |
|
 |
 |
 |
| MSP-100 | MSP-10000 | MSP-8X300 | MSP-12X300 |
