High Capacity数字蠕动泵 WP-D01
WP-D01 High Capacity数字蠕动泵
产品介绍
Single Peristaltic Pump Multiple control functions are available, including constant speed mode, volumetric dispensing mode, and intermittent mode. These modes can be combined to enable flexible, programmable operation.
- Flow Rate : Designed for high-throughput liquid transfer, delivering flow rates up to 13 L/min, suitable for bulk processing applications.
- Precision Control : Microprocessor-based control system provides stable speed regulation and ensures accurate, repeatable dosing performance.
- Contamination Control : The fluid path is fully confined to the tubing, preventing contact with pump components and enabling safe handling of sterile, corrosive, or sensitive media.
- Motor : High-torque brushless motor ensures maintenance-free operation and reliable performance under continuous duty conditions.

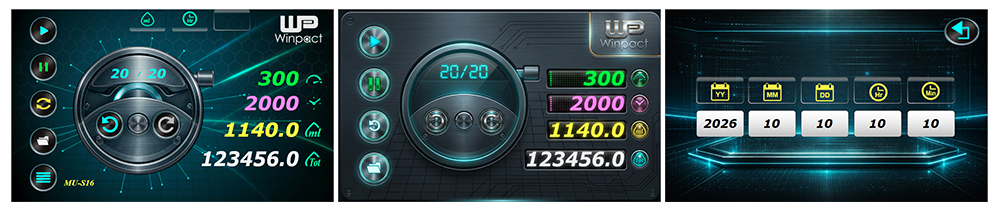

- Interface : Digital touchscreen interface supports intuitive operation, with both continuous run and programmable dispensing modes available.

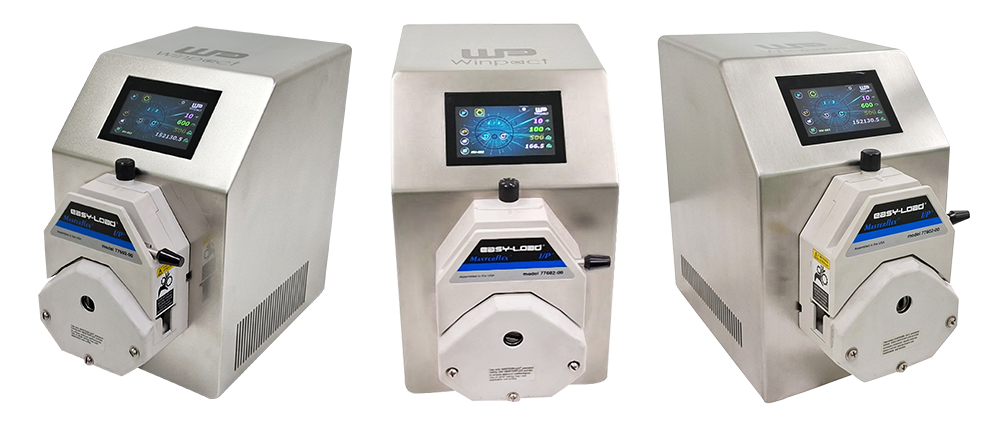

- Construction : Stainless steel housing offers high mechanical strength, excellent corrosion resistance, and long service life in industrial environments.
- Function : Multiple control functions are available, including constant speed mode, volumetric dispensing mode, and intermittent mode. These modes can be combined to enable flexible, programmable operation.
* Technical specifications subject to change without notice.
| Cat. No. | WP-D01 |
|---|---|
| Display | 4.3" Color Touch Panel |
| Motor | Servo motor |
| Max. Pump Speed | 300rpm, variable flow |
| Direction | Forward / Reverse |
| Flow Range | 10 to 13000 mL/min |
| Number of Rollers | 4 |
| Mode | Continuons / Timing / Programmable |
| Calibration | Flow rate calibration |
| Cat. No. | Product Description |
|---|---|
| WP-D01 | High Capacity Digital Peristaltic Pump |
660 mm Hg (26" Hg) 8.8 m (29 ft.)
| Silicon Tubing Specifications |  |
 |
 |
|---|---|---|---|
| Cat. No. | MU-S26 | MU-S73 | MU-S82 |
| Tubing material: | Platinum-cured silicone | ||
| Inner Diameter | 0.252" (6.40 mm) | 0.374" (9.50 mm) | 0.500" (12.70 mm) |
| Hose Barb Size | 0.25" (6.35 mm) | 0.375" (9.525 mm) | 0.500" (12.70 mm) |
| Wall Thickness | 3.2mm | ||
| Maximum Flow Rate(ml/min) | 4000 ml/min | 8000 ml/min | 13000 ml/min |
| *The flow range is subject to the motor drive of the pump. Please see Peristaltic Pump specifications for reference. | |||
| Max. Pressure | 2.06 bar (30 psi) | 2.7 bar (40 psi) | 1.4 bar (20 psi) |
| Max. Vacuum | 660 mm Hg (26" Hg) | 510 mm Hg (20" Hg) | |
| Suction lift H2O | 8.8 m (29 ft.) | 7 m (23 ft.) | |
| Max. Temperature | 230 °C (446 °F) | ||
| Max. temperature (dynamic) | 100 °C (212 °F) | ||
| Min. Temperature | –50 °C (–58 °F) | ||
| Min. temperature (dynamic) | –40 °C (–40 °F) | ||
| Sterilization | Autoclave, Ethylene Oxide, Gamma Irradiation | ||
| Sterilisation method EtO: | Yes | ||
| Sterilisation method autoclave | Yes | ||
