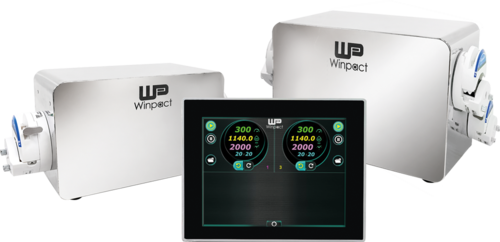

新数字蠕动泵 WP-2DP and WP-4DP
WP-2DP and WP-4DP 新数字蠕动泵
产品介绍

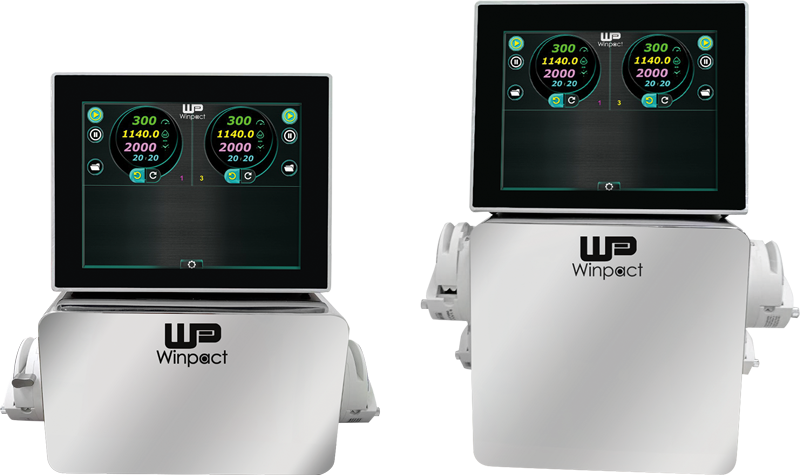

The New Digital Peristaltic Pump Series features a 12" Color Touch Panel for improved control convenience and the individual control function. This including Dual and Tetrad peristaltic pumps models are available for your preference.
- 12” Color Touch Panel shows temperature and timer simultaneously
- Compact size provides high portability
- High quality Masterflex and Watson Marlow easy load pump head
- Reversible for purging purposes
- Flow rate range from 1.2 to 1,140ml/min
- Multiple programmable operation mode available
- Constant speed and constant volume are available
* *One 12" color touch panel controller can control only one set of peristaltic pump module(2DP or 4DP) at a time.
* 所有图片仅供参考，实际产品可能与图不同。
* 技术规格如有更改，恕不另行通知。
| Cat. No. | WP-2DP | WP-4DP |
|---|---|---|
| Display | 12" Color Touch Panel | |
| Voltage | 100V~240V, 50/60Hz | |
| Number Of pump head | 2 | 4 |
| Number Of Rollers | 4 | |
| Controller | Digital microprocess controller | |
| Pump Speed / Increment | 5-250rpm / 1rpm | |
| Max. Pump Speed | 250rpm | |
| Flow Range | 0.3 - 1,026ml/min | |
| Program | 2-step Program (running & ceasing) | |
| Operating temperature | Ambient to 40°C | |
| Cat. No. | Product Description |
|---|---|
| WP-2DP | New Digital Peristaltic Pump, 2pump head |
| WP-4DP | New Digital Peristaltic Pump, 4pump head |
| 硅胶管规格 |  |
 |
 |
 |
 |
 |
|---|---|---|---|---|---|---|
| 型号 | MU-S13 | MU-S14 | MU-S16 | MU-S25 | MU-S17 | MU-S18 |
| 內徑 (吋 / mm) | 0.03(0.8) | 0.06(1.6) | 0.12(3.1) | 0.19(4.8) | 0.25(6.4) | 0.31(7.9) |
| Hose Barb Size (吋 / mm) | 1/16(1.6) | 1/16(1.6) | 1/8(3.2) | 3/16(4.8) | 1/4(6.4) | 3/8(9.5) |
| 流量6 to 600 rpm ( ml/ min) | 0.36 to 36 | 1.3 to 130 | 4.8 to 480 | 10 to 1000 | 17 to 1700 | 23 to 2300 |
| *流量范围取决于泵的转速。请参考蠕动泵规格以获取详细信息。 | ||||||
| 连续最大压力 | 25psig | 20psig | 15psig | 10psig | ||
| (1.7bar) | (1.4bar) | (1.0bar) | (0.7bar) | |||
| 瞬间最大压力 | 40psig | 35psig | 20psig | 15psig | ||
| (2.7bar) | (2.4bar) | (1.4bar) | (1.0bar) | |||
| 最大真空压力 | 26" Hg (660mm Hg) | 20" Hg (510mm Hg) | ||||
| 扬程 | 29ft H2O (8.8m H2O ) | 22ft H2O (6.7m H2O ) | ||||
