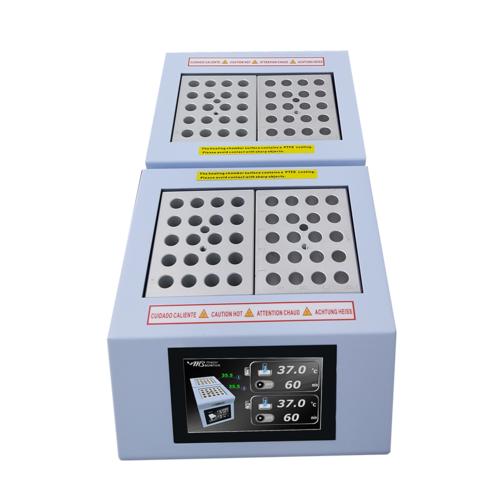

Elite Dual 恆溫金属浴, EL-02DT series
EL-02DT series is designed for laboratory research, chemical applications, and environmental engineering, and is one of the most advanced dual dry baths on the market.
产品介绍
Elite Dual Dry Bath lncubator is designed for laboratory research, chemical applications, and environmental engineering, and is one of the most advanced dual dry baths on the market.
Elite Dual Dry Bath lncubator, EL-01DT series * Marketing video
- 4.3" color touch screen for instant observation
- dual temperature control slot for individually control temperature
- Digital microprocessor controller confers performance and precise control
- Broad temperature control range & guaranteed uniformity
- Excellent heating rate
- User temperature calibration

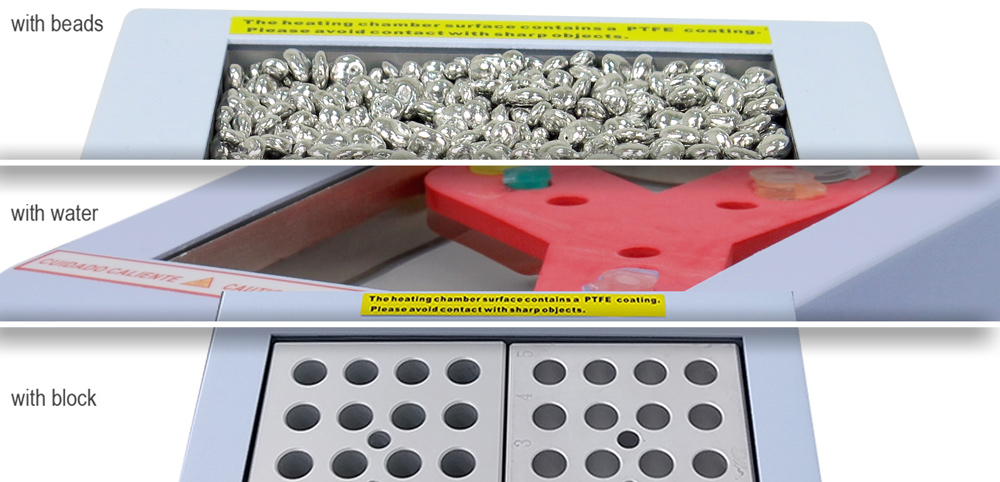

- Can be used as a water bath or bead bath
- Molded aluminum alloy chamber
- Optional PC Control software available
- Compact design
- Multiple blocks for convenient replacement, easy to clean and disinfect.
- Customized blocks is available
* 技术规格如有更改，恕不另行通知。
| Cat. No. | EL-02DT-110 | EL-02DT-220 |
|---|---|---|
| Display | 4.3" colorful touch screen | |
| Voltage | 110, 50/60Hz, T5A | 220, 50/60Hz, T2.5A |
| Power | 400W | |
| Controller | Digital microprocess controller | |
| Heating chamber | Molded waterproof aluminum alloy coated with PTFE | |
| Temperature control range | 5°C above ambient to 150°C | |
| Temperature increment | 0.1°C | |
| Temperature accuracy | ± 0.2°C at 37°C | |
| Temperature uniformity | ± 0.2°C at 37°C | |
| Timer | 9999(min) / Continuous | |
| Operating temperature | Ambient to 40°C | |
| Block material | Aluminum alloy | |
| Block type | Standard and customized type are available | |
| Block Dimension (WxLxH) | Approx. 79x104x50mm for standard type | |
| Thermometer well | Yes (except microplate blocks and bead dry bath blocks) | |
| Overall Dimension (WxLxH) | Approx. 202x398x117mm | |
| Weight | Approx. 5.3kg | |
| Cat. No. | Product Description |
|---|---|
| EL-02DT-110 | Elite Dual Dry Bath lncubator Unit with 4.3" color touch screen, large dual temperature control slot for individually control temperature. Rated Voltage : 110V |
| EL-02DT-220 | Elite Dual Dry Bath lncubator Unit with 4.3" color touch screen, large dual temperature control slot for individually control temperature. Rated Voltage : 220V |

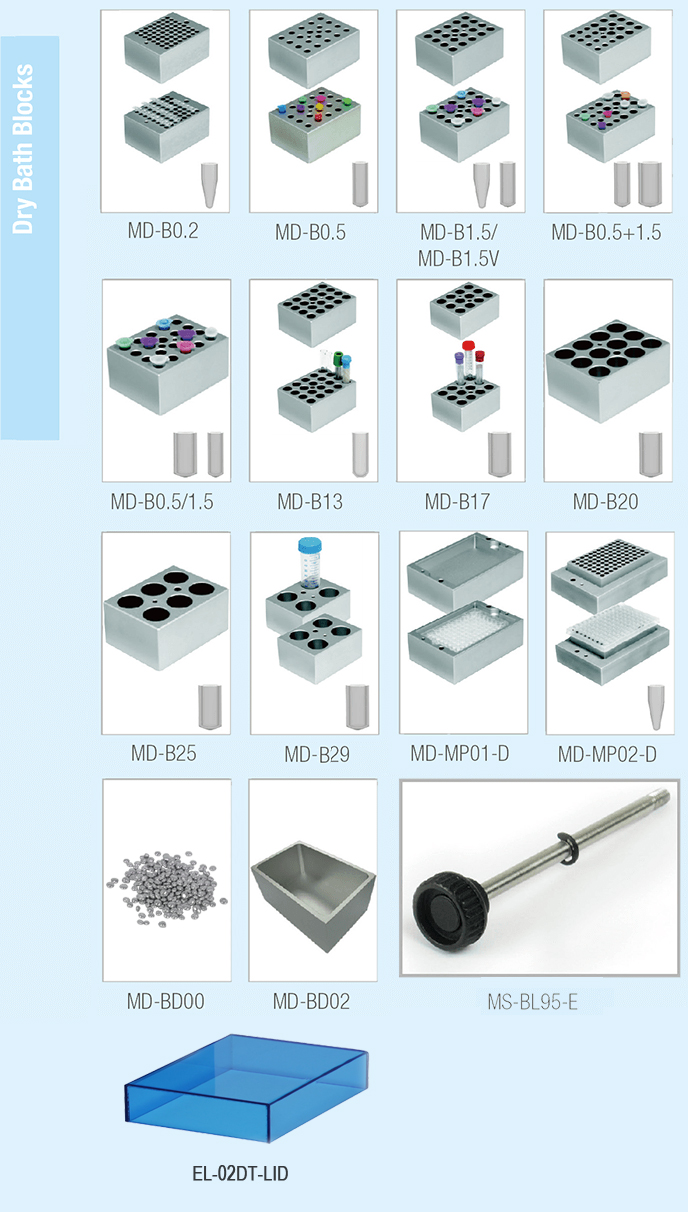

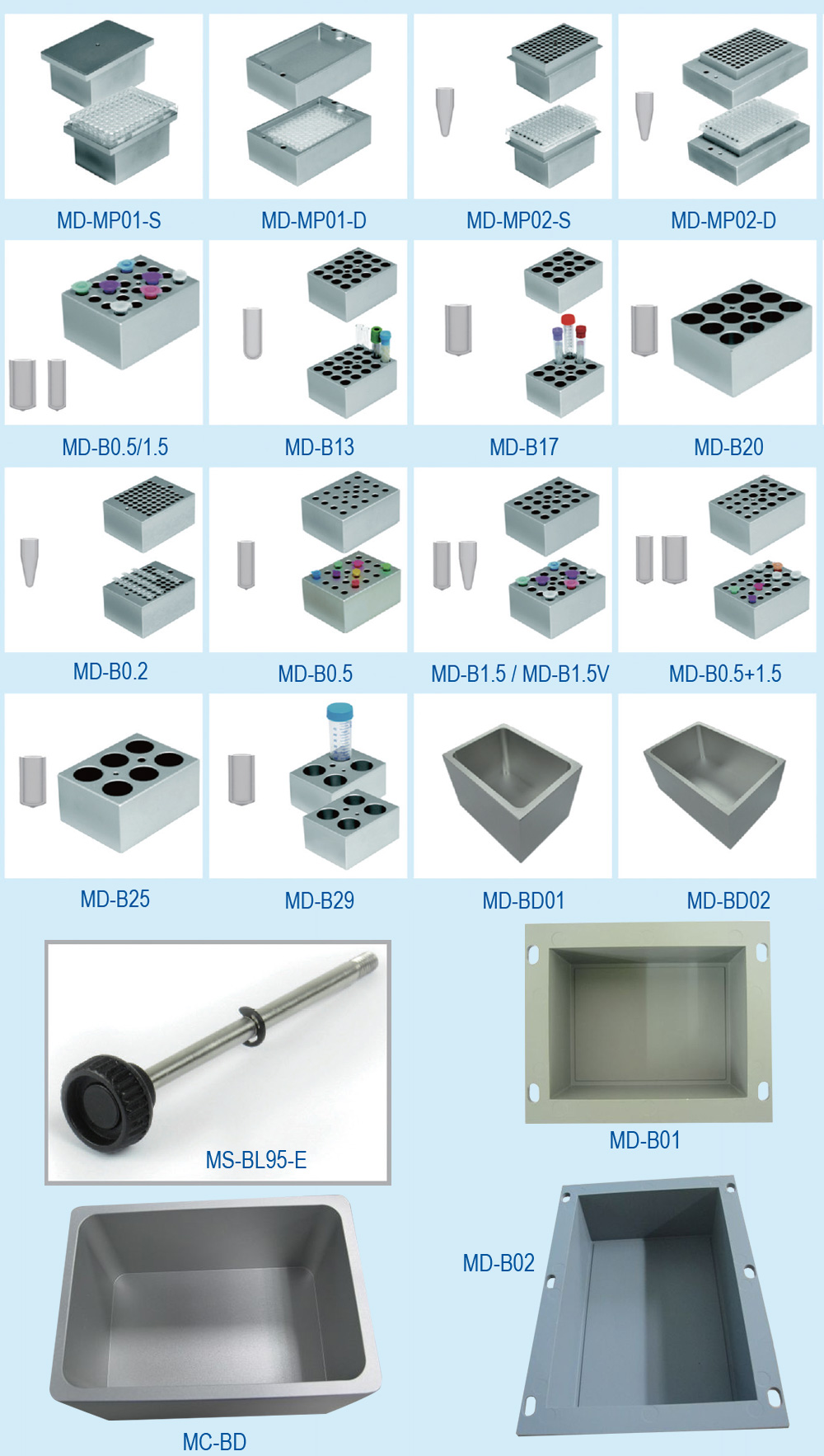

| Cat. No. | Product Description |
|---|---|
| MD-B0.2 | Block for 0.2 ml tube 64 wells |
| MD-B0.5 | Block for 0.5 ml tube 20 wells |
| MD-B0.5+1.5 | Combination Block for 0.5 and 1.5 ml tube |
| MD-B0.5/1.5 | Double Side Block for 0.5 & 1.5 ml tube |
| MD-B1.5 | Block for 1.5 or 2.0 ml tube 20 wells |
| MD-B1.5V | Block for 1.5 or 2.0 ml tube 20 wells, V type |
| MD-B13 | Block well size 13 mm 20 wells |
| MD-B17 | Block for 15 ml tube 12 wells |
| MD-B20 | Block well size 20 mm 12 wells |
| MD-B25 | Block well size 25 mm 6 wells |
| MD-B29 | Block for 50 ml tube 4 wells |
| MD-MP01-D | For Microplate; Titerplate (dual block unit only) |
| MD-MP02-D | For 96 wells Deep Microplate or PCR plate (for dual block unit only) |
| MD-BD00 | 700g Armor Bead |
| MD-BD02 | Dual bead MD dry bath block, L104 x W158 x H76mm |
| MS-BL95-E | Block lifter, 95mm length with E-Type Retaining Ring |
| EL-02DT-LID | Blue transparent lid, (WxLxH) 135x180x20mm, T=3mm |
