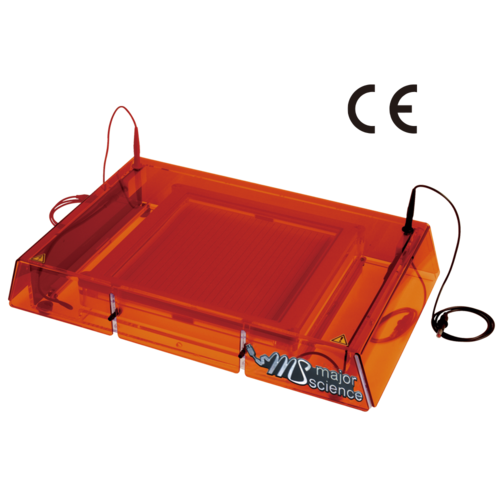

Flatbed IEF System, MIEF
Product
The Flatbed IEF System has been designed to perform all flat bed IEF techniques, including wick-based electrophoresis with horizontal and hand-cast IEF gels, and focusing with IPG strips. The unit includes a large cooling platform which offers increased strip capacity and active gel area. Uniform cooling of the platform is achieved using a large ceramic plate that may be connected to any standard chiller via quick-fit connecters for enhanced gel or strip cooling. An optional rehydration tray is also available for overnight rehydration of up to twelve IPG strips before use.
MS02_Electrophoresis* Marketing video
- For IPG strip and IEF gel applications
- Large cooling platform area
- Pick-and-place easy to position electrodes
- Grid for accurate electrode alignment
- Rehydration tray also available
* All images are for reference only, actual products might differ from the pictures above.
* Technical specifications subject to change without notice.
| Cat. No. | MIEF |
|---|---|
| Max. Strip Length | Approx. 9.4" (240mm) |
| Max. Gel Dimension | Approx. 10.2"x10.2" (260x260mm) |
| Dimension (WxLxH) | Approx. 21.7"x13.8"x3.9" (550x350x100mm) |
| Focusing tray strip capacity | Focusing tray strip capacity : 12x 18 and 24cm strips; 24x 7 and 11cm strips |
| Operating temperature | 4-25°C |
| Cat. No. | Product Description |
|---|---|
| MIEF | Flatbed IEF system for IEF strips and gels |
